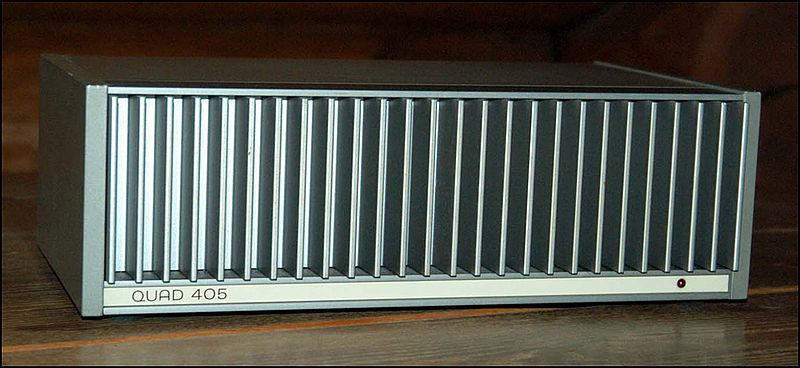

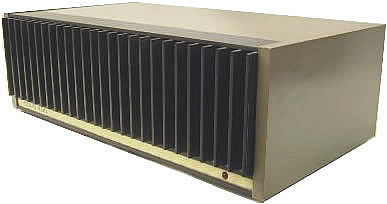

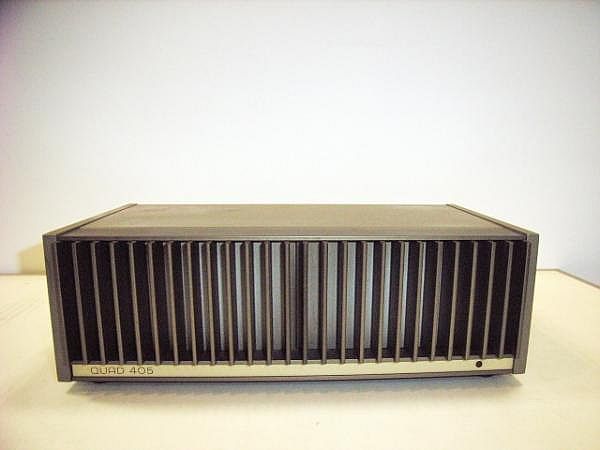

Quad 405 power amp price and specificationsRs.20,000
Seller Information
Condition: 1, No Warranty
Ad Posted By Home User AD ID: 36088 used
|
|
![Pin It](https://pinterest.com/pin/create/button/?url=https://www.bsapk.com/b/music-players/quad-405-power-amp-for-rs-20000-used-4-rs20000-lahore&media=https://www.bsapk.com/ui/59/f0f9d171211e6ab668748594534868b659.jpg&description=Get Used Quad 405 power amp Price in Pakistan. salam to those who believe in ALLAAH alone n day of Resurrection; here for sale is Quad 405 power amp for Rs 20,000.. This is something you don't see too often: an entirely new approach to power amplifier design. As Quad points out in its literature for the 405, class-A operation of transistors provides the lowest distortion, but drastically limits the amount of power an output transistor can deliver without overheating. Operating at 220Volts Note: its DIN connector had been replaced to RCA standard connector. Specifications: Two-channel, "current-dumping" solid-state power amplifier. Rated output: 100Wpc into 8 ohms (20dBW). Frequency response: -1dB at 20Hz (12dB/octave subsonic filter), -0.5dB at 20kHz, -3dB at 50kHz. Sensitivity: 500mV in for 100W out. Power bandwidth: 10Hz-20kHz. Damping factor: 80. Channel Separation: 85dB at 1kHz. Dimensions: 13.4" (340mm) W by 4.5" (115mm) H by 7.7" (195mm) D. Weight: 20 lbs (9kg). (Most transistor amps use class-AB output operation, in which each of a pair of power transistors handles part of each signal cycle and shuts down during the other part. Imperfect synchronism between the two halves causes the familiar "crossover distortion," which accounts for most solid-state sound. In class-A operation, each output transistor draws current though the entirety of each signal cycle, eliminating the crossover transition but doubling the amount of time current is drawn, and thus tending to cause the transistor to heat up more.) In "current dumping," a low-powered, low-distortion class-A amplifier is used to control the amount of current passing through a pair of heavy-duty "dumping" transistors, and it is the latter which provide the driving power (100Wpc) for the speakers. Any serious offer would be consider. Feel free to contact about this or other listed products. Have a nice day n life ahead amen.){kind=link}
This is something you don't see too often: an entirely new approach to power amplifier design. As Quad points out in its literature for the 405, class-A operation of transistors provides the lowest distortion, but drastically limits the amount of power an output transistor can deliver without overheating.
Operating at 220Volts

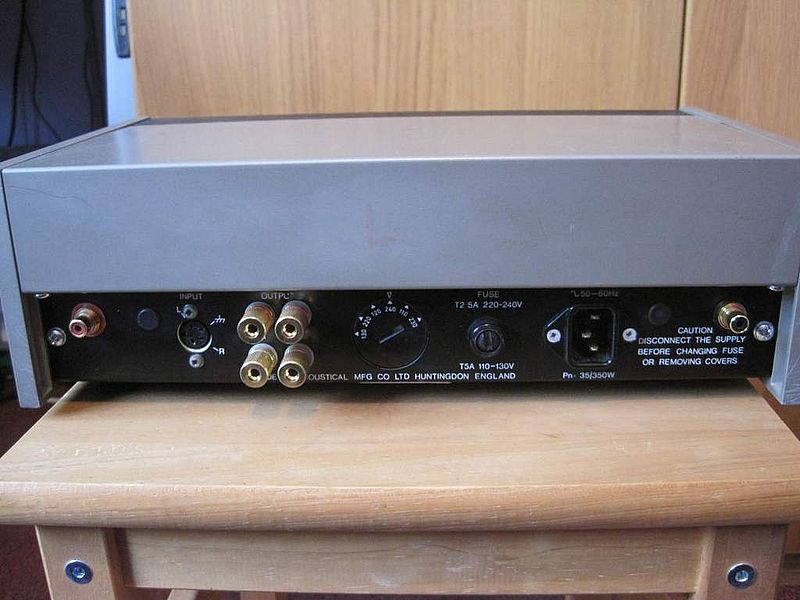

Note: its DIN connector had been replaced to RCA standard connector.
Specifications:
Two-channel, "current-dumping" solid-state power amplifier.
Rated output: 100Wpc into 8 ohms (20dBW).
Frequency response: -1dB at 20Hz (12dB/octave subsonic filter), -0.5dB at 20kHz, -3dB at 50kHz.
Sensitivity: 500mV in for 100W out.
Power bandwidth: 10Hz-20kHz.
Damping factor: 80.
Channel Separation: 85dB at 1kHz.
Dimensions: 13.4" (340mm) W by 4.5" (115mm) H by 7.7" (195mm) D.
Weight: 20 lbs (9kg).
(Most transistor amps use class-AB output operation, in which each of a pair of power transistors handles part of each signal cycle and shuts down during the other part. Imperfect synchronism between the two halves causes the familiar "crossover distortion," which accounts for most solid-state sound. In class-A operation, each output transistor draws current though the entirety of each signal cycle, eliminating the crossover transition but doubling the amount of time current is drawn, and thus tending to cause the transistor to heat up more.)
In "current dumping," a low-powered, low-distortion class-A amplifier is used to control the amount of current passing through a pair of heavy-duty "dumping" transistors, and it is the latter which provide the driving power (100Wpc) for the speakers.
Any serious offer would be consider. Feel free to contact about this or other listed products.
Have a nice day n life ahead amen.
